Digital Load cell






Digital Load Cell

Features :-
High Quality
Very Stable
Fully Plated
IP 68 compliance
Armed cable (optional)
Private protocol (optional)

Specification :-

Model

- DL44
Capacity - 30 Ton
Rated Output - 3000d mv/V
Zero Balance - (+ -)1% F.S
Creep (30min) - (+ -) 0.02% F.S
Non Linearity - (+ -) 0.02% F.S
Hysteresis - (+ -) 0.02% F.S
Repeatability - (+ -) 0.02% F.S
Temperature Effect on Output - (+ -) 0.02% F.S / 10K
Temperature Effect on Zero - (+ -) 0.02% F.S / 10K
Operating Temperature Range - -30̇ͦ C~ 70ͦ C
Compensated Temperature Range - 10̇ͦ C~ 60ͦ C
Safety Overload - 150% F.S
Ultimate Overload - 200% F.S
Input Resistance - \
Output Resistance - \
Material - Alloy Steel
Cable Length - 16 Meter
Insulation Resistance - ≥5000Mῼ
Excitation - 5 VDC 12 VDC

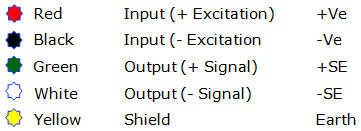

Wiring Code:-
Caution : Changing cable length will affect the above specification.
