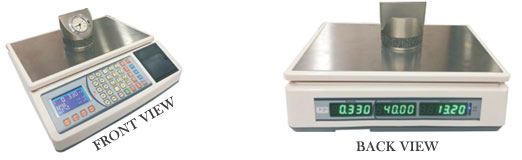

Printer Scale (with Graphic LCD) |
|

|
PRIME-44 Printer Scale features :- |
|
Introduction:- |
PRIME-44 is a highly advanced, multipurpose weighing machine.
Besides providing accurate & stable weight measurement, it
also allows user to do price calculation, amount accounting,
stock accounting, billing and tax calculation, printing of
bills & reports & many more. It is ideally suitable for
small & medium shops, retail outlets, sweet shops, vegetable
shops, industries etc.
|
Hardware :- |
- Attractive, strong, metal cabinet with powder paint.
- Micro-controller based advance design.
- Inbuilt thermal printer. Paper width 57mm, maximum dia
39mm.
- Display: LED, 5 digits for weight, Graphic LCD, for
PLU name, rate & amount.
- LED display Brightness control.
- High lifecycle micro switch 7x5 keypad.
- Inbuilt battery backup, SMPS charging for reliable
battery charging.
- Inbuilt RTC
- External 3 wire display (small / big) - Optional
- RS232 port.
- Ps2 Keyboard port.
|
Software :- |
- Tare & Zero facility.
- Very simple & user friendly operation.
- Weight capacity & accuracy, 3 slabs.
- Zero tracking, weight tracking etc.
- 500 PLU. 30 Hotkeys & 4000 bills.
- Kg/Lt/piece mode. Qty can be entered directly in piece
mode.
- 5 definable tax slabs.
- Discount,%discount, Extra amount on bill functions.
- Direct weight slip print.
- Multiple item weight slip with item name print.
- Bill print with details for tax add, tax included etc.
- PLU downloading from PC.
- Can work even for non PLU items.
- Piece count mode (wt-unitwt-piece) for industries.
|
Reports:- |
- Bill print with details for tax add, tax included etc.
- Amount day report (Revenue report for a day).
- PLU day report (PLU sale report for a day).
- PLU date wise report (PLU sale report for last 10
days).
|
Programmable settings (via operator password):- |
Very simple & systematic programming. All program settings
are arranged under 5 menus. Just navigate between menus to
change the required settings.
- Minimum weight setting.Buzzer indiction for stable
weight.
- Zero tracking & weight tracking.
- Power save mode for LED display & LCD back light.
- Load cell Count View facility.
- Very simple calibration procedure.
- Changeable operator password.
- All titles (3 headers, 3 footers) are editable by the
user.
- Any of the title can be disabled. Disable a setting if
you do not want to print that particular title .
- Memory bill print enable/disable.
- Option for print Header BOLD in bill print.
- Option for single / multiple copies for bill print.
- Settable report print lines
- Any PLU / Hot key can be deleted.
- All record / Day report can be deleted.
|
PC connectivity :- |
PRIME-44 can be connected to any computer via serial port.
Windows-XP/98 based Software is available for this purpose.
The owner can Edit / Delete any PLU / Hot key or Header &
Tailor.
- Download all PLU & Hot key records from machine memory
to PC.
- Update all PLU & Hot key records from PC to machine.
- Export to Excel format for editing, print records.
- This software is very easy to install & operate.
|
|
 |
 |
|
|
|
